An intuitive interface for the simple, seamless capture of 360° product photography, and video spins.

Available on both PC and Mac, the AC360 TT (Turntable) Command Software gives users an easy, all-in-one way to operate and control the camera, Hand Control Unit microcomputer, and Turntable hardware for your AutoCam360 Mini TT, or 36 TT product imaging systems.


COMMAND INTERFACE

The software is split into three main dynamically scalable, tear-away interfaces: Camera Command, Hardware Command, and Session Manager— the in-software data management tool.


CAMERA COMMAND

The Camera Command interface allows for remote tethering of your camera and provides a set of tools for adjusting the camera without having to physically touch the camera.

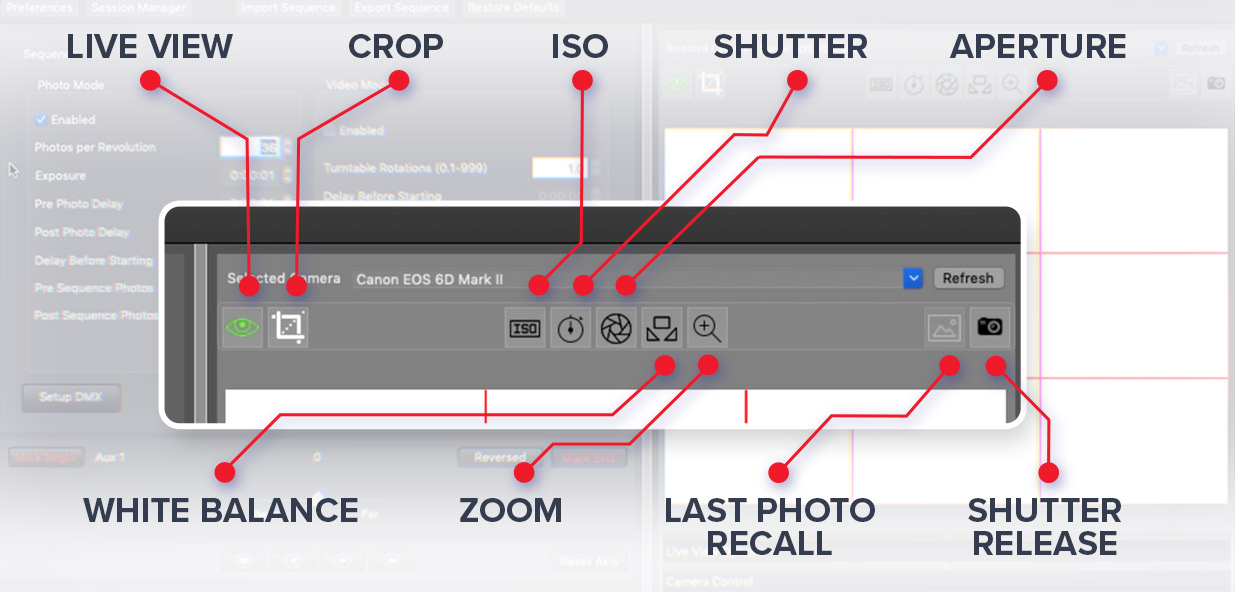

The primary toolbar offers quick access to several key tools:


  • Live View

  • Image cropping

  • Basic camera controls (ISO, shutter speed, aperture, and white balance)

  • Windowed Zoom for attaining critical focus

  • A “view last photo taken” recall

  • A “quick fire” shutter release button




Using Live View (currently only available for select Canon and Nikon cameras), users can see framing, composition, and lighting of their subject within the software.

Below the Live View window, there are 6 dynamic menus: Live View Options, Camera Control, Overlay, Photo Colors, Crop Setup and Watermark Setup that can all be expanded to reveal more advanced options.

Some of these advanced controls include:


  • Grid overlays for REFERENCE, centering, and composition

  • An expanded set of camera controls

  • Onion-skinning images for referencing and matching previously captured images

  • Image watermarking

  • Crop previewing

  • A histogram with an over/under exposure TOOL


HARDWARE COMMAND




The Hardware Command window gives users a host of advanced hardware control panels, including:

  • CHOICE BETWEEN interval photo mode, or a continuous video mode

  • Advanced turntable motor controls

  • An intuitive motor control interface

  • A channel controller to interface with accessories



PHOTO/VIDEO MODE SETTINGS

In 360° photo mode, you can make fine adjustments in your spin sequence, including settings for the number of photos per revolution, exposure delay, as well as pre-, and post-photo time delays.

In 360° video mode, you can also set the number of rotations, and a timed delay before starting a spin.

Intuitive to use, and easy to customize.





TURNTABLE MOTOR COMMAND

The turntable motor command panel provides a set of advanced tools for adjustments such as turntable speed, damping, and direction.

CHANNEL COMMAND

The channel command panel lets users manually rotate the turntable either with a variable speed slider, or with incremental bump buttons that move the turntable left or right, and ensure your subject is both centered, and properly lit from all angles.

On both the Mini TT and 36 TT, the systems permits use of 3 channels of external control. This allows for control over additional accessories on your system such as DMX light controls, external focus or zoom motors, and suspension motor modules.

With the addition of a DMX light dimmer, and DMX lights, the system is capable of adjusting both the brightness, and color of up to 4 channels of DMX lighting.


SESSION MANAGER




The Session Manager tool handles all post-image capture data management. Its simple, yet intuitive interface helps expedite workflows and maximize efficiency.

Features include:


  • Metadata tagging (including IPTC, and XMP data)

  • Photo review tools

  • Basic photo editing

  • Batch file management

  • Spin previews

  • A fast, and easy spin host uploader that can be managed right from TT COMMAND

TT Command is issued on an annual license that permits one seat access to the system at a time. Additional license seats can be purchased if needed.



Click below for more information regarding our interactive product imaging systems.
